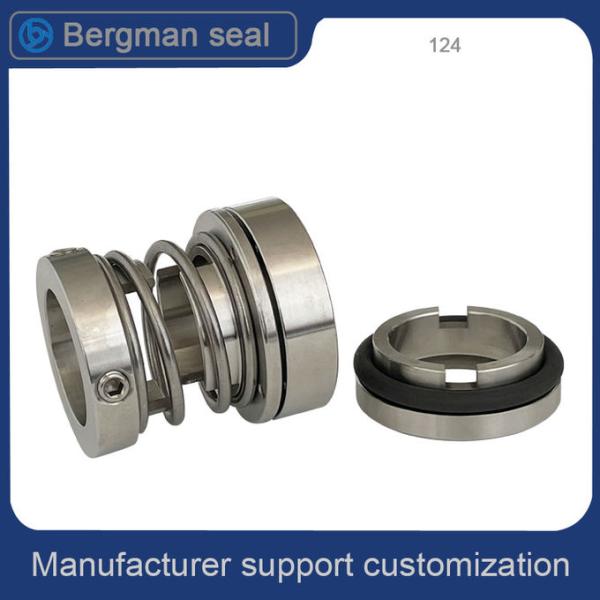

Type 124 Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction.
Industrial Standards: DIN24960, ISO3069, GB6556-94
Scopes of Application: widely used in many types of chemical pumps and clean water pumps.
Operation Parameters:
| Pressure: | 0.8 MPa or less |
| Temperature: | - 20 ~ 220 ºC |
| Linear Speed: | 15 m/s or less |
| Rotary Ring: | Carbon/SiC/TC |
| Stationary Ring: | SiC/TC |
| Elastomers: | NBR/EPDM//Aflas/PTFE/FFKM |
| Springs: | SS304/SS316 |
| Metal Parts: | 410S/SS304/SS316/SS316L |
Mediums: weak acid, weak alkalis, water and solvents.
GB124 basic parameters can refer to GB103
| Size | d | d1 | D1 | D2 | L | L1 | L2 | L3 |
| 103-16 | 16 | 33 | 25.5 | 33 | 56 | 40 | 12 | 12 |
| 103-18 | 18 | 35 | 28.5 | 36 | 60 | 44 | 12 | 16 |
| 103-20 | 20 | 37 | 30.5 | 40 | 63 | 44 | 14 | 16 |
| 103-22 | 22 | 39 | 32.5 | 42 | 67 | 48 | 14 | 20 |
| 103-25 | 25 | 42 | 35.5 | 45 | 67 | 48 | 14 | 20 |
| 103-28 | 28 | 45 | 38.5 | 48 | 69 | 50 | 14 | 22 |
| 103-30 | 30 | 52 | 40.5 | 50 | 75 | 56 | 14 | 22 |
| 103-35 | 35 | 57 | 45.5 | 55 | 79 | 60 | 14 | 26 |
| 103-40 | 40 | 62 | 50.5 | 60 | 83 | 64 | 14 | 30 |
| 103-45 | 45 | 67 | 55.5 | 65 | 90 | 71 | 14 | 36 |
| 103-50 | 50 | 72 | 60.5 | 70 | 94 | 75 | 14 | 40 |
| 103-55 | 55 | 77 | 65.5 | 75 | 96 | 77 | 14 | 42 |
| 103-60 | 60 | 82 | 70.5 | 80 | 96 | 77 | 14 | 42 |
| 103-65 | 65 | 92 | 80.5 | 90 | 111 | 89 | 17 | 50 |
| 103-70 | 70 | 97 | 85.5 | 97 | 116 | 91 | 19 | 52 |
| 103-75 | 75 | 102 | 90.5 | 102 | 116 | 91 | 19 | 52 |
| 103-80 | 80 | 107 | 95.5 | 107 | 123 | 98 | 19 | 59 |
| 103-85 | 85 | 112 | 100.5 | 112 | 125 | 100 | 19 | 59 |
| 103-90 | 90 | 117 | 105.5 | 117 | 126 | 101 | 19 | 60 |
| 103-95 | 95 | 122 | 110.5 | 122 | 126 | 101 | 19 | 60 |
| 103-100 | 100 | 127 | 115.5 | 127 | 126 | 101 | 19 | 60 |
| 103-110 | 110 | 141 | 130.5 | 142 | 153 | 126 | 21 | 80 |
| 103-120 | 120 | 151 | 140.5 | 152 | 153 | 126 | 21 | 80 |
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.
2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1
3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.
4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.
5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.
Fixing and Applying Directions of Mechanical Seals
1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
